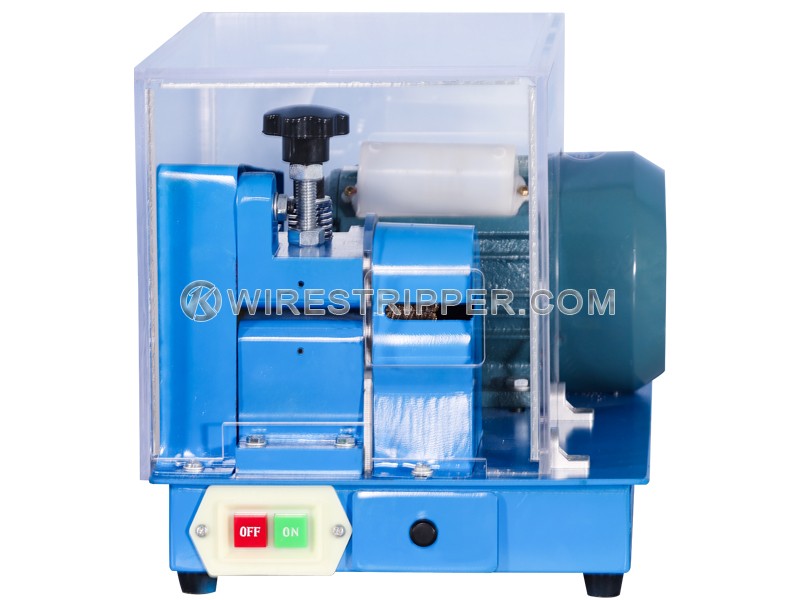

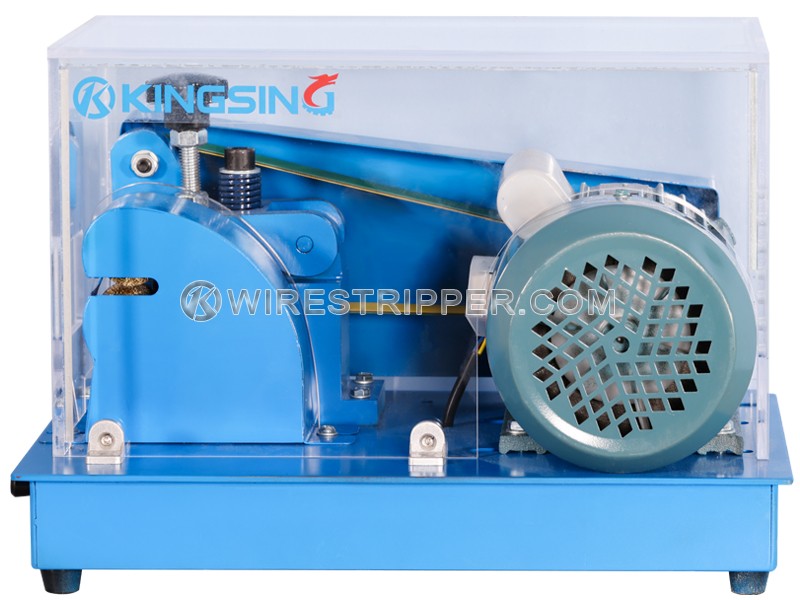

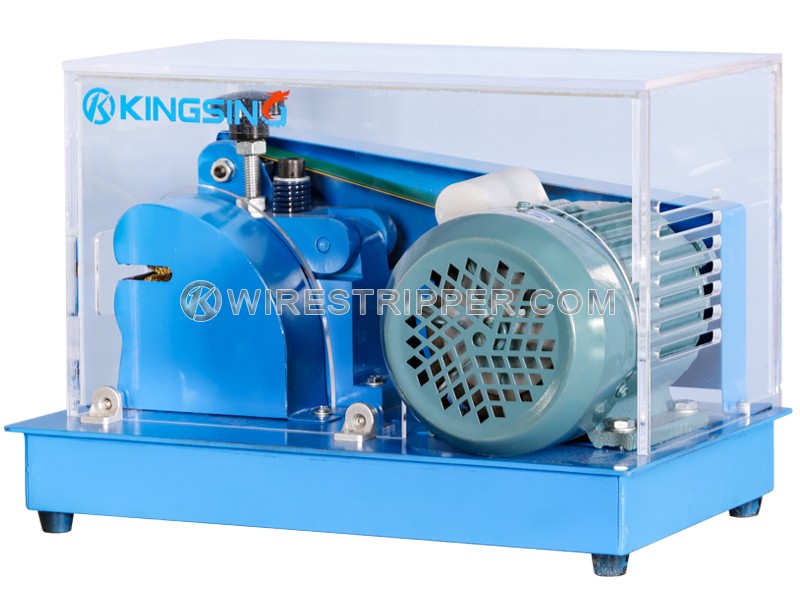

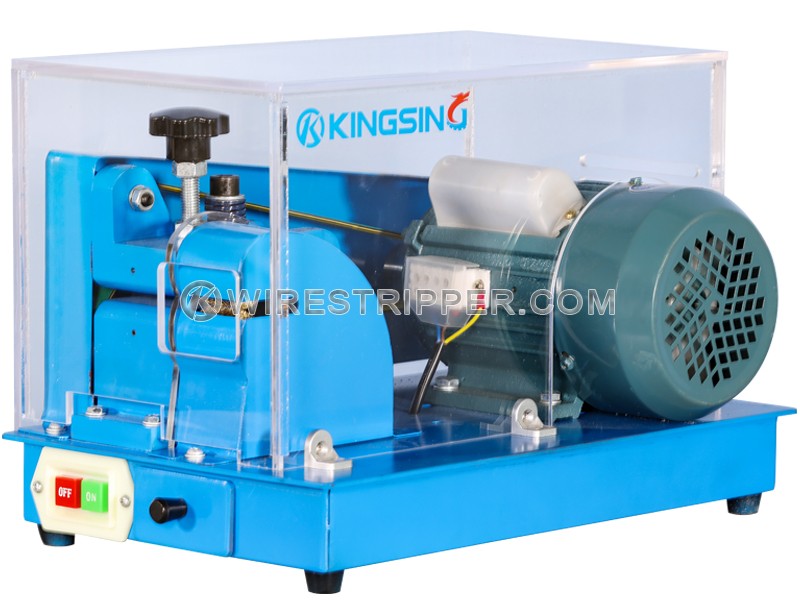

Enamel Covered Wire Stripping Machine

  • Model:KS-E5052
  • Net. Weight:
  • Dimension:

The abrasive method of stripping wire utilizes either wire or fiberglass brushes to abrade the insulation off the conductor.

This type of stripping is both quicker and less damaging to the wire than scraping processes.

This enamel covered wire stripping machine can handle round, square, rectangular or oval shaped magnet wire and also standard wire with most common types of insulation.

This tool also removes oxides from component leads quickly and easily to promote better soldered connections.

A built-in guard affords protection from fingers coming in contact with the wire of fiberglass wheels.

Available Wire Size: Round Wire: Ø0.2-3.8mm, Flat Wire: Max. width 20mm

Stripping Length: 4-100mm

Speed: 3300r/min

Power Supply: 220V/50Hz

Power Rating: 350W

Dimension: 485×305×265mm

Net Weight: 35Kg


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
